VGX Limits

1. Limits, Sizes and Special Numbers

Item	Value	Description
Max Relationships	15,616	Relationship types are enumerated. This is the maximum number of unique relationship types that can exist within a graph instance.
Max Vertex Types	208	Vertex types are enumerated. This is the maximum number of unique vertex types that can exist within a graph instance.
Max Feature Vector Dimensions	22,366,890	Feature vector dimensions are enumerated. This is the maximum number of unique vector dimension strings that can exist within a graph instance.
Max Feature Vector Dimension Length	27	A feature vector dimension string can be no longer than 27 bytes (utf-8 encoded string.)
Max Feature Vector Components	42	A feature vector may contain up to 42 enumerated dimensions.
Max Euclidean Vector Components	65,472	A euclidean vector may contain up to 65,472 components, and the number of components must be a multiple of 32.
Arc Memory	32 bytes (16 bytes with M_FWDONLY)	One arc consumes 16 bytes of memory, but since every arc has an implicit reverse arc 32 bytes are used. Note that additional overhead for maintaining internal mapping structures should be expected. See Arcs for details. Note the special case of arcs created with M_FWDONLY consume only 16 bytes.
Arcs per vertex (hard limit)	25,165,824,000	For perspective this is about 500 GiB of memory.
Vertex Memory	192 bytes	A vertex with an identifier shorter than 40 bytes, and without properties and no more than one inarc and one outarc takes 192 bytes of memory. See Vertices for details.
Short Vertex ID	1 - 39 bytes	A vertex identifier shorter than 40 bytes is embedded in the basic vertex object. If the vertex identifier is 40 bytes or more an additional string object is allocated and linked with the vertex object. Note that this limit applies to the utf-8 encoded string.
Recursive Vertex Acquisition Limit	112	A vertex may be acquired recursively no more than 112 times.
Property Memory	16+ bytes	A vertex property occupies a 16-byte slot in the vertex property map, which is established only when the first property is set for a vertex. There is additional overhead in managing the map itself, which manifests in quantized increments as the map structure is expanded (or first established.) Property key and value strings have an additional one-time storage cost per unique string for a graph instance, equal to the size of the string.
Max String Length	131,000 bytes	This is the largest string size (in bytes, after utf-8 encoding) that is allowed for vertex names and types, property keys, and relationship types. It is also the maximum length of evaluator expressions. Property string values may exceed this limit because long value strings are compressed. However, if the number of bytes in the compressed data is too large the value cannot be stored. Since the compression ratio depends on the actual string data it is not possible to define a specific upper bound for the raw string length.
Max Numeric Array Property Length	16,375	This is the largest numeric array that can be assigned to a vertex property.
Max Keyval Mapping Property Length	5,406	This is the maximum number of items in a hash map that can be assigned to a vertex property.

Item

Value

Description

Max Relationships

15,616

Relationship types are enumerated. This is the maximum number of unique relationship types that can exist within a graph instance.

Max Vertex Types

208

Vertex types are enumerated. This is the maximum number of unique vertex types that can exist within a graph instance.

Max Feature Vector Dimensions

22,366,890

Feature vector dimensions are enumerated. This is the maximum number of unique vector dimension strings that can exist within a graph instance.

Max Feature Vector Dimension Length

A feature vector dimension string can be no longer than 27 bytes (utf-8 encoded string.)

Max Feature Vector Components

A feature vector may contain up to 42 enumerated dimensions.

Max Euclidean Vector Components

65,472

A euclidean vector may contain up to 65,472 components, and the number of components must be a multiple of 32.

Arc Memory

32 bytes

(16 bytes with M_FWDONLY)

One arc consumes 16 bytes of memory, but since every arc has an implicit reverse arc 32 bytes are used. Note that additional overhead for maintaining internal mapping structures should be expected. See Arcs for details.

Note the special case of arcs created with M_FWDONLY consume only 16 bytes.

Arcs per vertex (hard limit)

25,165,824,000

For perspective this is about 500 GiB of memory.

Vertex Memory

192 bytes

A vertex with an identifier shorter than 40 bytes, and without properties and no more than one inarc and one outarc takes 192 bytes of memory. See Vertices for details.

Short Vertex ID

1 - 39 bytes

A vertex identifier shorter than 40 bytes is embedded in the basic vertex object. If the vertex identifier is 40 bytes or more an additional string object is allocated and linked with the vertex object. Note that this limit applies to the utf-8 encoded string.

Recursive Vertex Acquisition Limit

112

A vertex may be acquired recursively no more than 112 times.

Property Memory

16+ bytes

A vertex property occupies a 16-byte slot in the vertex property map, which is established only when the first property is set for a vertex. There is additional overhead in managing the map itself, which manifests in quantized increments as the map structure is expanded (or first established.) Property key and value strings have an additional one-time storage cost per unique string for a graph instance, equal to the size of the string.

Max String Length

131,000 bytes

This is the largest string size (in bytes, after utf-8 encoding) that is allowed for vertex names and types, property keys, and relationship types. It is also the maximum length of evaluator expressions.

Property string values may exceed this limit because long value strings are compressed. However, if the number of bytes in the compressed data is too large the value cannot be stored. Since the compression ratio depends on the actual string data it is not possible to define a specific upper bound for the raw string length.

Max Numeric Array Property Length

16,375

This is the largest numeric array that can be assigned to a vertex property.

Max Keyval Mapping Property Length

5,406

This is the maximum number of items in a hash map that can be assigned to a vertex property.

2. Vertices

Vertex objects are fixed-size structures of 192 bytes, with optional references to additional members such as properties, arcs, feature vector and (long) ID string. If a vertex has no properties, no feature vector, a short identifier (less than 40 bytes) and at most 1 inarc and outarc it is completely contained in the 192-byte vertex structure.

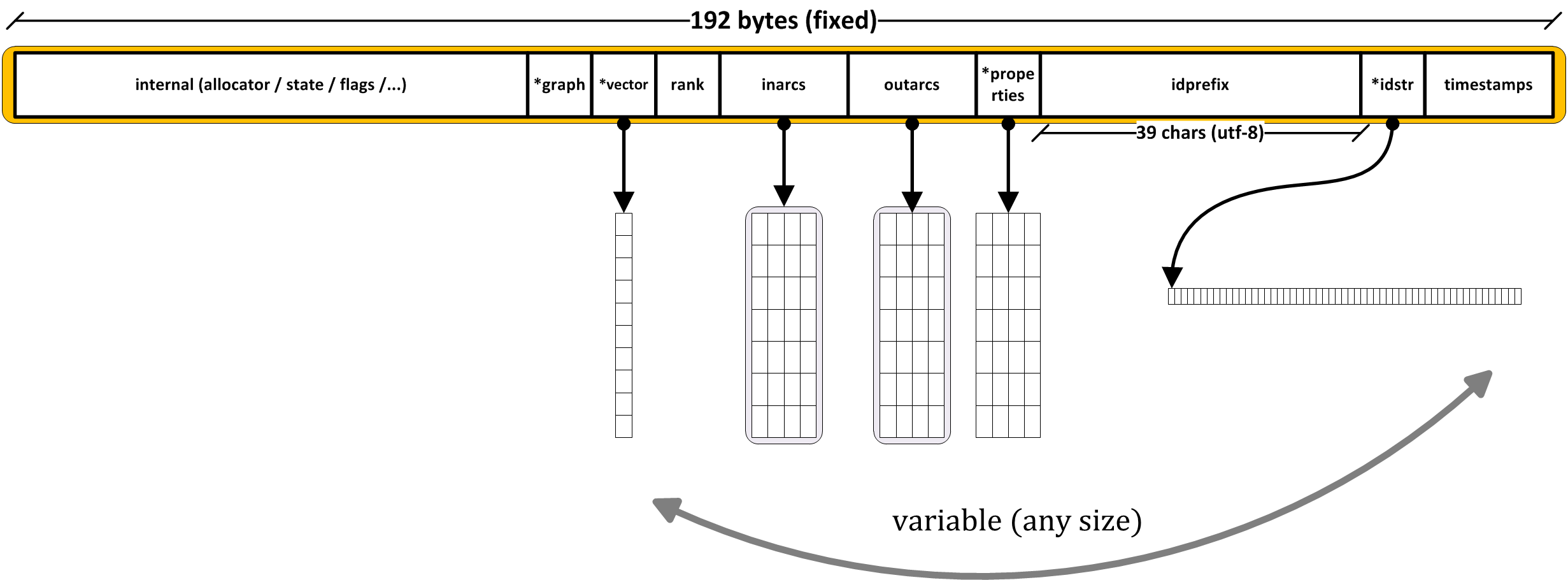

Figure 1. Vertex

2.1. Properties

Vertex properties are key-value pairs stored in a map object. When the first property is added to a vertex a new map object is created and associated with the vertex. The minimum map size is 64 bytes and can hold up to two properties. The next map size is 128 bytes and can hold up to six properties. (The property map structure is similar to that used for arcs, see capacity chart for more details.)

In addition to the property map structure a global map (per graph instance) maintains a mapping of unique property key strings and value strings. Repeated use of the same property key and value strings for multiple vertices does not require additional storage for the strings. Vertex property maps only store integer enumerations.

2.2. Arcs

When a vertex is connected to other vertices the arcs are stored in separate arcvector objects associated with the vertex. A vertex is capable of storing one outarc and one inarc without the need for separate arcvector objects. See Arcs for more details.

2.3. Vectors

System wide vector mode is selected at initialization. The default is feature vector mode. Alternatively euclidean vector mode can be selected by setting euclidean=True.

2.3.1. Feature Vector

A feature vector is a vector object uniquely associated with a vertex. The feature vector object size depends on the number of vector features, as summarized in the table below.

In addition to the vector object a global map (per graph instance) maintains a mapping of unique feature strings. Repeated use of the same feature for multiple vectors does not require additional storage for the feature strings. Vectors only store integer enumerations. (Feature enumerations are 32-bit hashes of the feature strings, with collision protection provided by the global map.)

Table 1. Feature Vector Sizes
Feature Vector Length	Memory Usage
1 - 16	128 bytes
17 - 32	192 bytes
33 - 48 (max)	256 bytes

2.3.2. Euclidean Vector

A Euclidean vector is a vector object uniquely associated with a vertex. The vector object size depends on the number of vector components. The number of components must be a multiple of 32. Euclidean vector object sizes are summarized in the table below.

Table 2. Euclidean Vector Sizes
Euclidean Vector Length	Memory Usage
32 and 64	128 bytes
96 and 128	192 bytes
160 and 192	256 bytes
224 and 256	320 bytes
…	…
65,440 and 65,472 (max)	65,536 bytes

2.4. Long Identifier

Vertex identifiers require additional storage when their utf-8 encoding exceeds 39 bytes. A separate string object holding the full identifier is associated with the vertex in this case. The 39-byte identifier prefix is always stored in the vertex structure.

3. Arcs

Arcs are stored in arcvectors representing the outarcs and inarcs of a vertex. When a new arc is created from initial A to terminal B, another entry is added to A’s outarcs arcvector (A pointing to B) and also to B’s inarcs arcvector (B pointing back to A.) Each arcvector entry is 16 bytes and therefore the arc from A to B consumes 32 bytes.

Implicit addition of a reverse arc from B back to A can be prevented with the M_FWDONLY modifier bitmask. This reduces overall memory consumption by up to 50%, but makes reverse graph traversal impossible.

The size of an arcvector object is always a power of two, determined by the number of arcs as shown in the table below. When arcs are added beyond the capacity of an existing arcvector the arcvector is expanded to the next higher size. When arcs are removed the size of the arcvector is adjusted to the next lower size as needed to minimize unused space. Note that system memory usage will appear to change in steps as a result of how memory pools are managed internally.

When an arcvector grows larger than what can be held in a 4KiB array, it is split into pieces that are chained together in a radix structure. When leaf nodes in the structure grow too large they are again split and new levels are created.

Table 3. Arcvector Capacities
Arcvector Size	Min Capacity*	Max Capacity	Typical Capacity	Typical Arc Count Range	Comment
N/A	1	1	1	0 - 1	Arc is embedded in vertex object
64 bytes	2	2	2	2	Always holds exactly two arcs
128 bytes	6	6	6	3 - 6
256 bytes	10	14	12	7 - 12
512 bytes	12	28	24	13 -24
1024 bytes	16	60	52	25 - 52
2048 bytes	20	124	108	53 - 108
4096 bytes	24	252	220	109 - 220
4352 bytes	22	256	220+	109 - 220+	Initial radix structure
4416 - 537,961,697,280 bytes	26	25,165,824,000		221 - 25,165,824,000	Radix structure

*) The minimum capacity is a theoretical minimum and is listed for completeness only. The actual capacity of an arcvector is a function of the hash of the memory locations of vertices it references. On average the actual capacity is close the the maximum capacity. The low end capacity is extremely unlikely to occur.

3.1. Simple Arc

A simple arc is represented in the arcvector as a cell consisting of a predicator and a pointer to a vertex. For outarcs the pointer points to the head vertex. For inarcs the pointer points to the tail vertex. The predicator stores information about the arc, including the relationship type and its value. Relationships are stored as integers representing strings. The strings themselves are stored in a separate enumeration map.

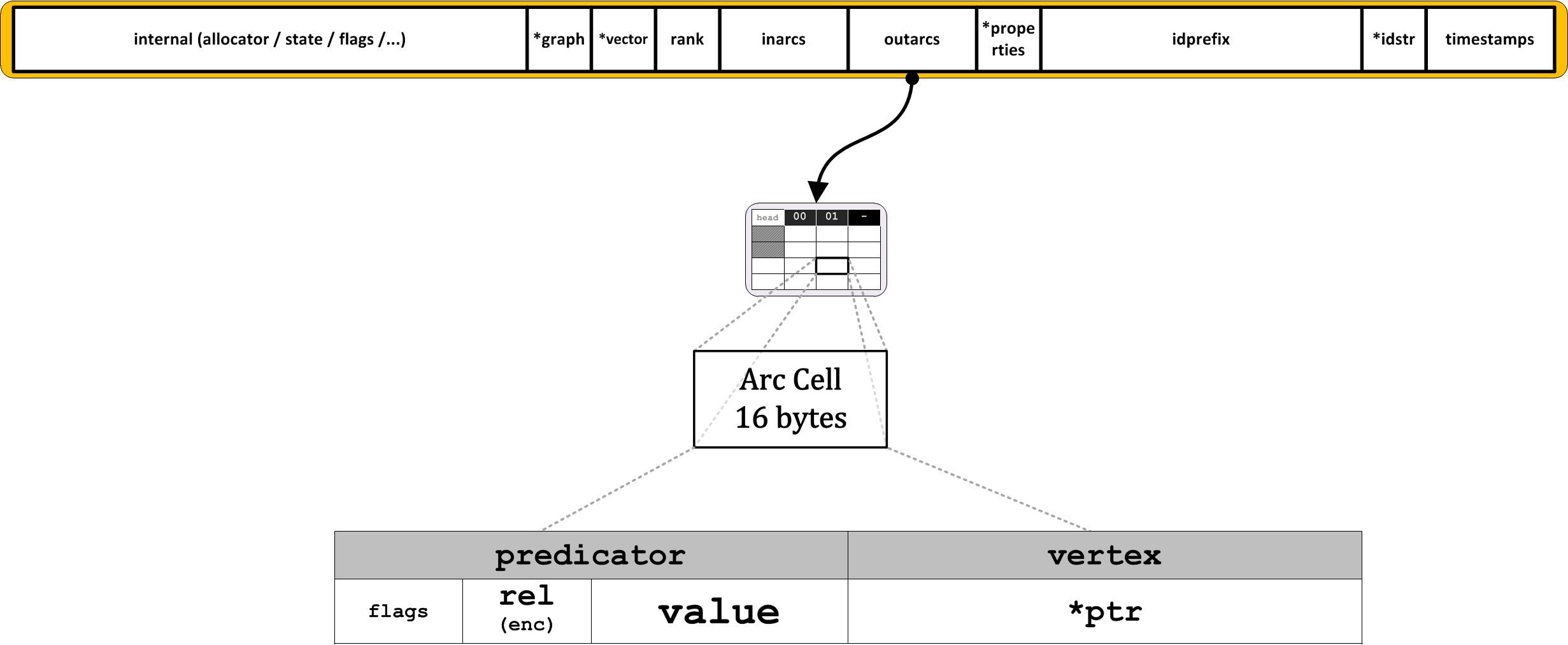

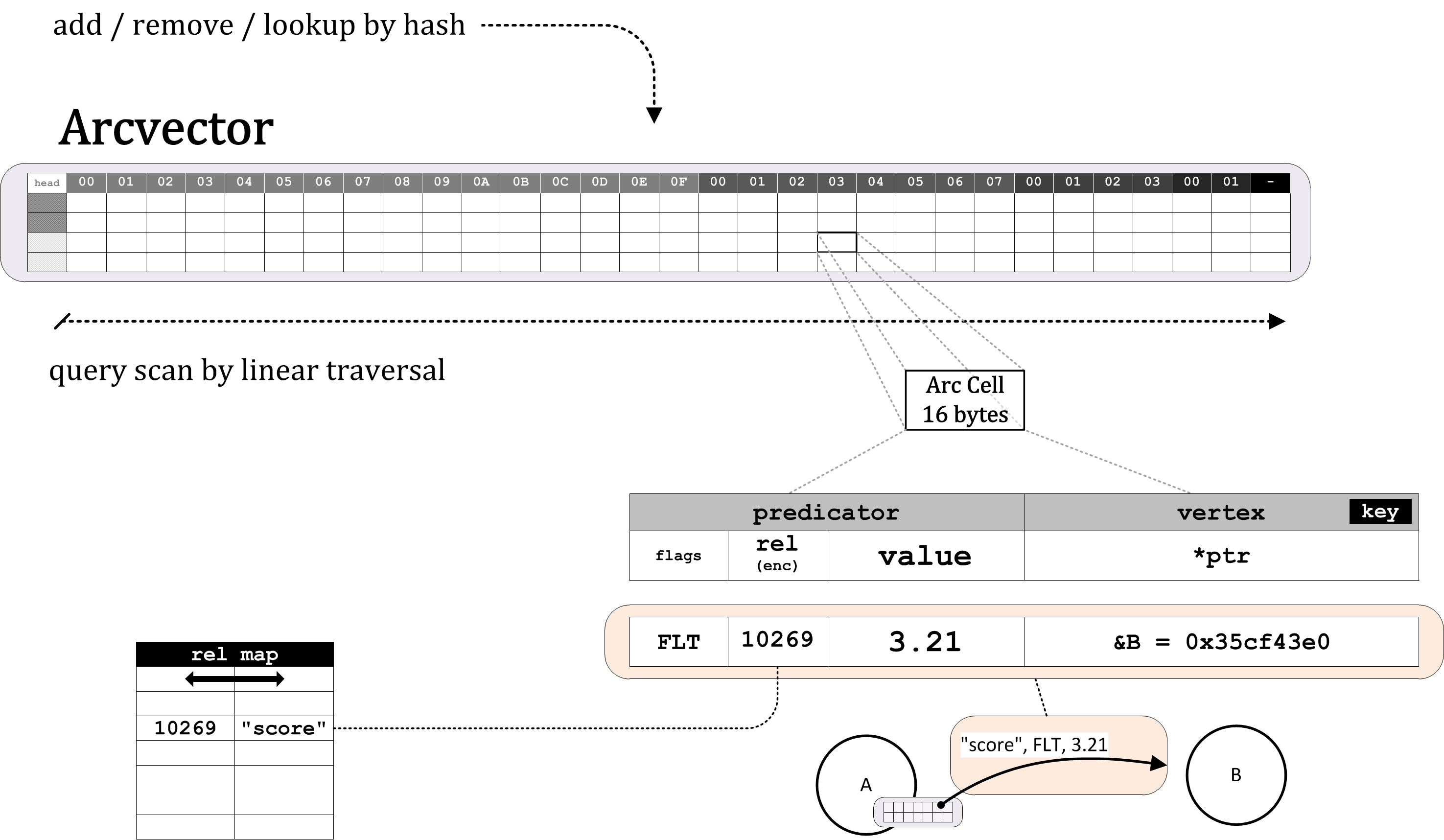

Figure 2. Arcvector

3.2. Multiple Arc

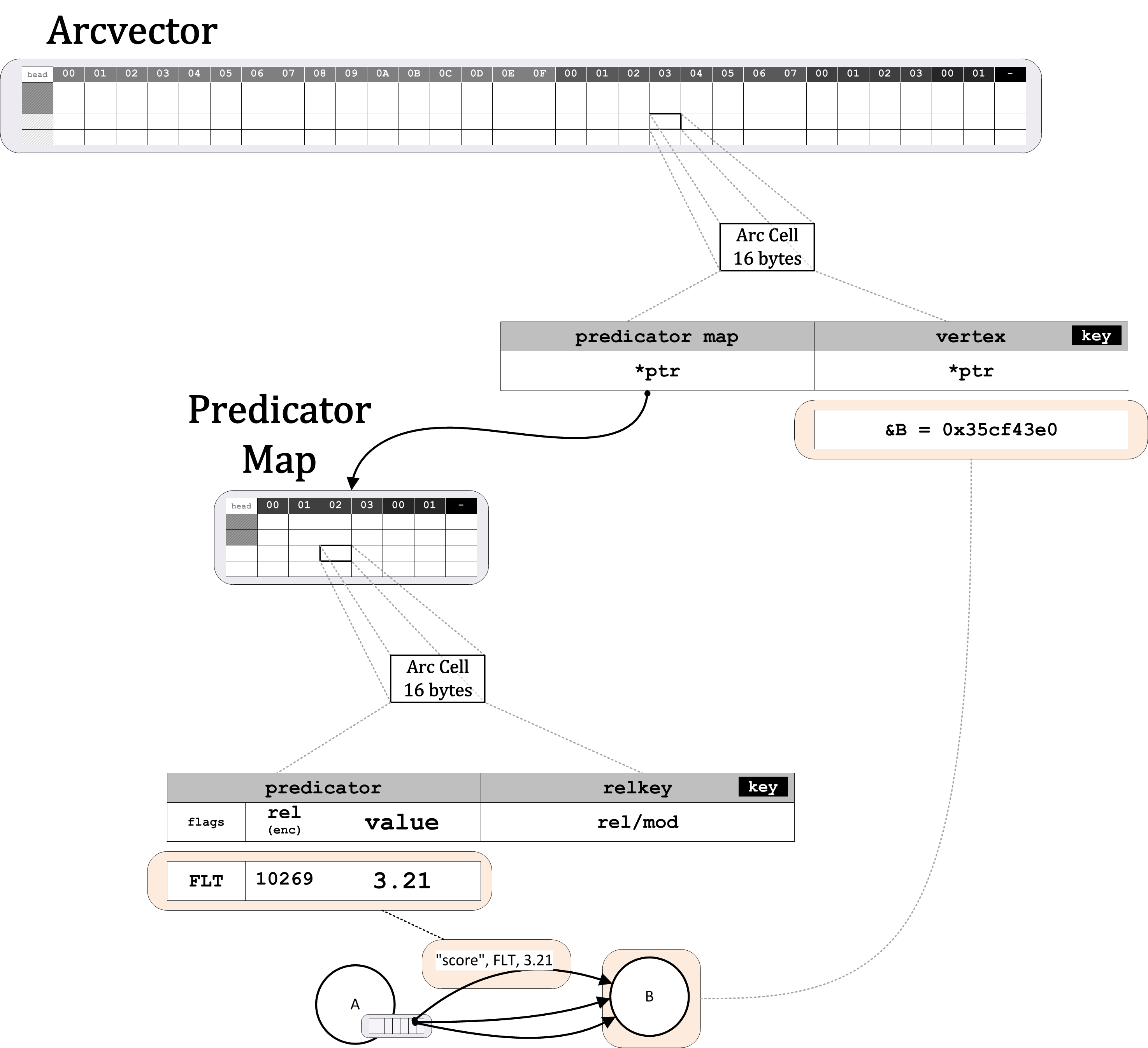

A multiple arc (i.e. more than one arc pointing to the same vertex) adds a predicator map layer to represent individual arcs terminating at the same vertex. The growth and capacity characteristics for the predicator map are exactly the same as for the main arcvector.

Figure 3. Arcvector Multi

3.3. Arcvectors Size Increments

Arcvector arrays come in eight sizes, from 0 to 4096 bytes. When a vertex has only one simple arc there is no arcvector array (i.e. size=0) and the arc is embedded in the vertex structure. Two or more arcs require arcvector arrays ranging from 64 to 4096 bytes. If the arcs cannot fit in the largest arcvector array a radix structure containing multiple linked arrays is created.

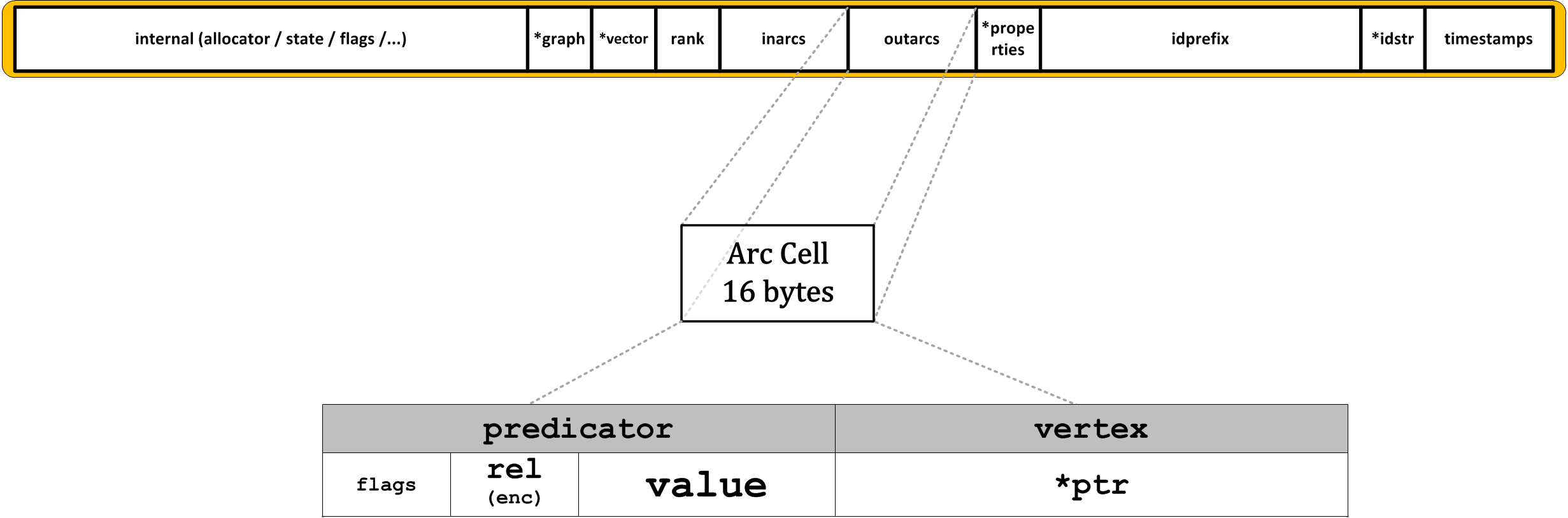

3.3.1. Embedded arcvector (0 bytes)

The first arc added to a vertex has no memory overhead as it is embedded in the basic vertex object.

Figure 4. Embedded arcvector can store a simple arc

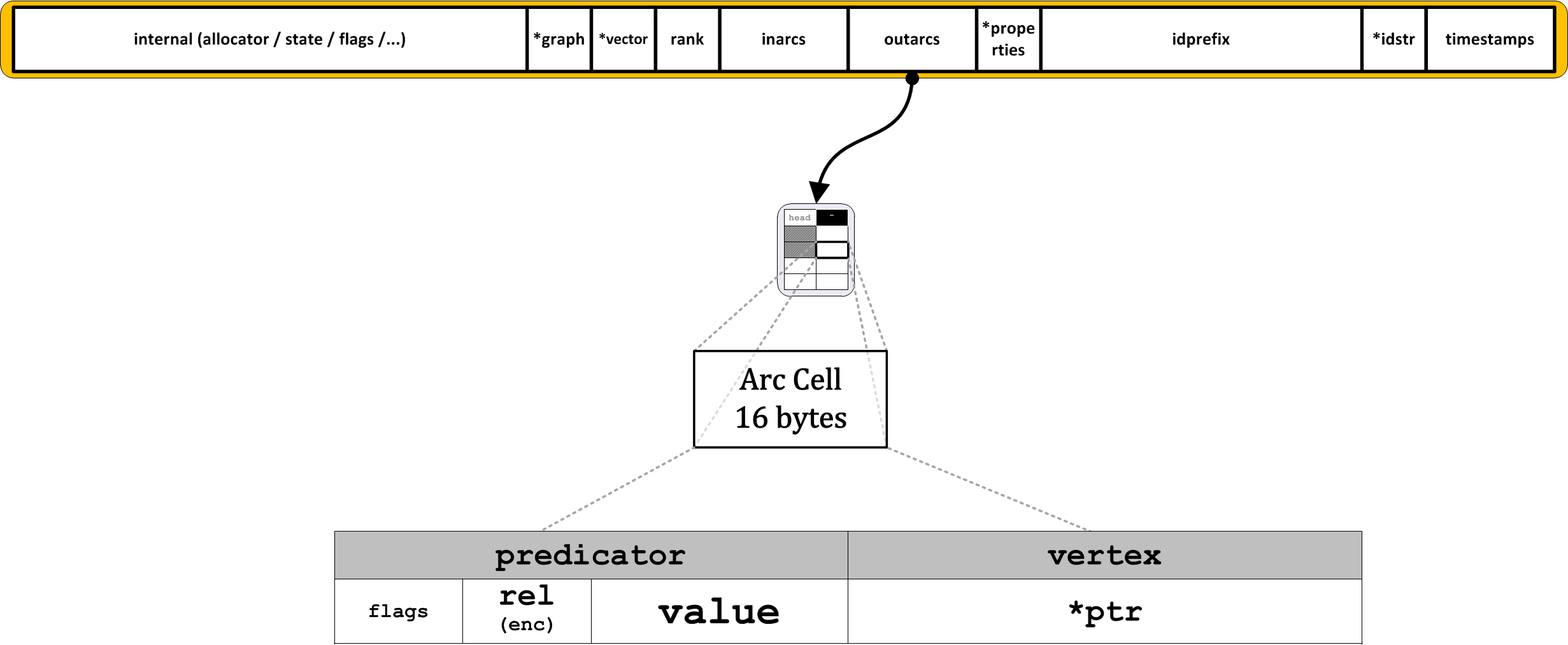

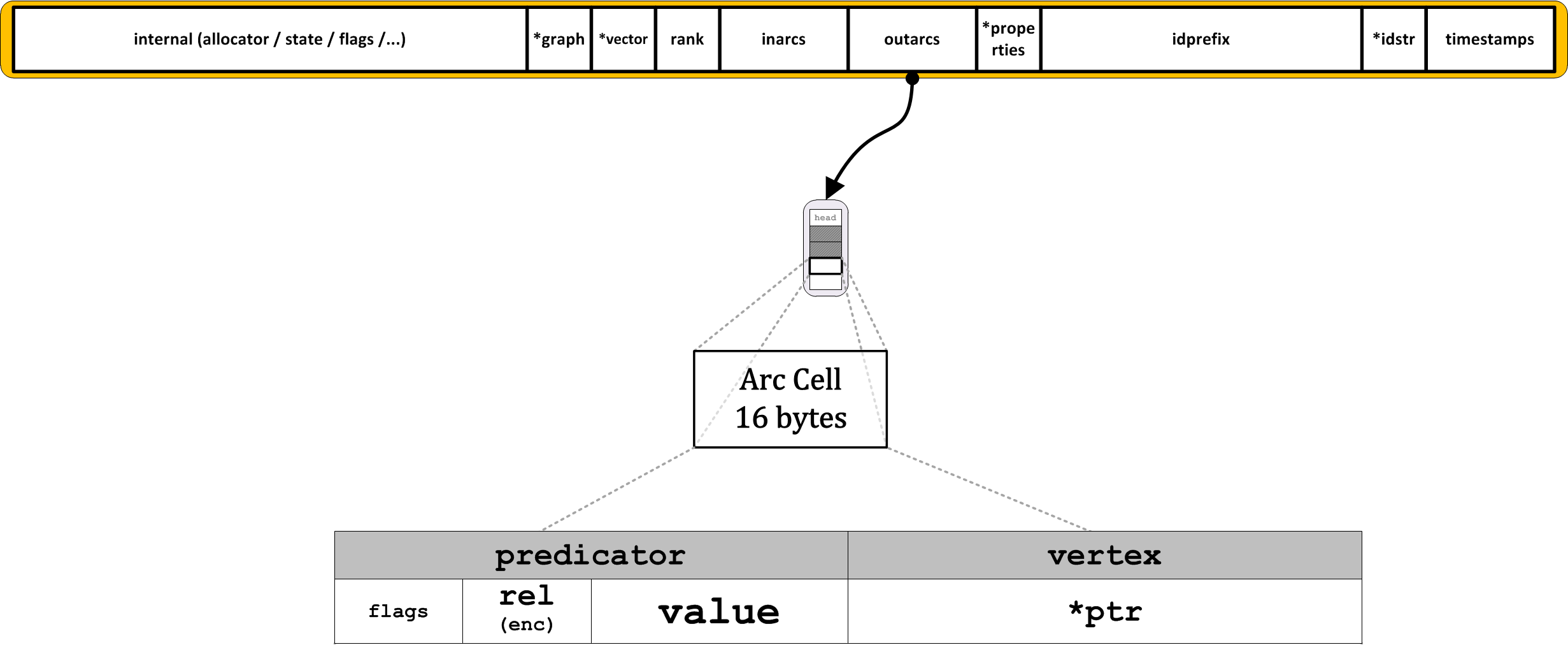

3.3.2. Minimal arcvector object (64 bytes)

The second arc added to a vertex establishes a new arcvector array object separate from the vertex object. This is a 64-byte structure now holding two arcs plus 32 bytes of management overhead.

Figure 5. Minimal arcvector object holds two arcs

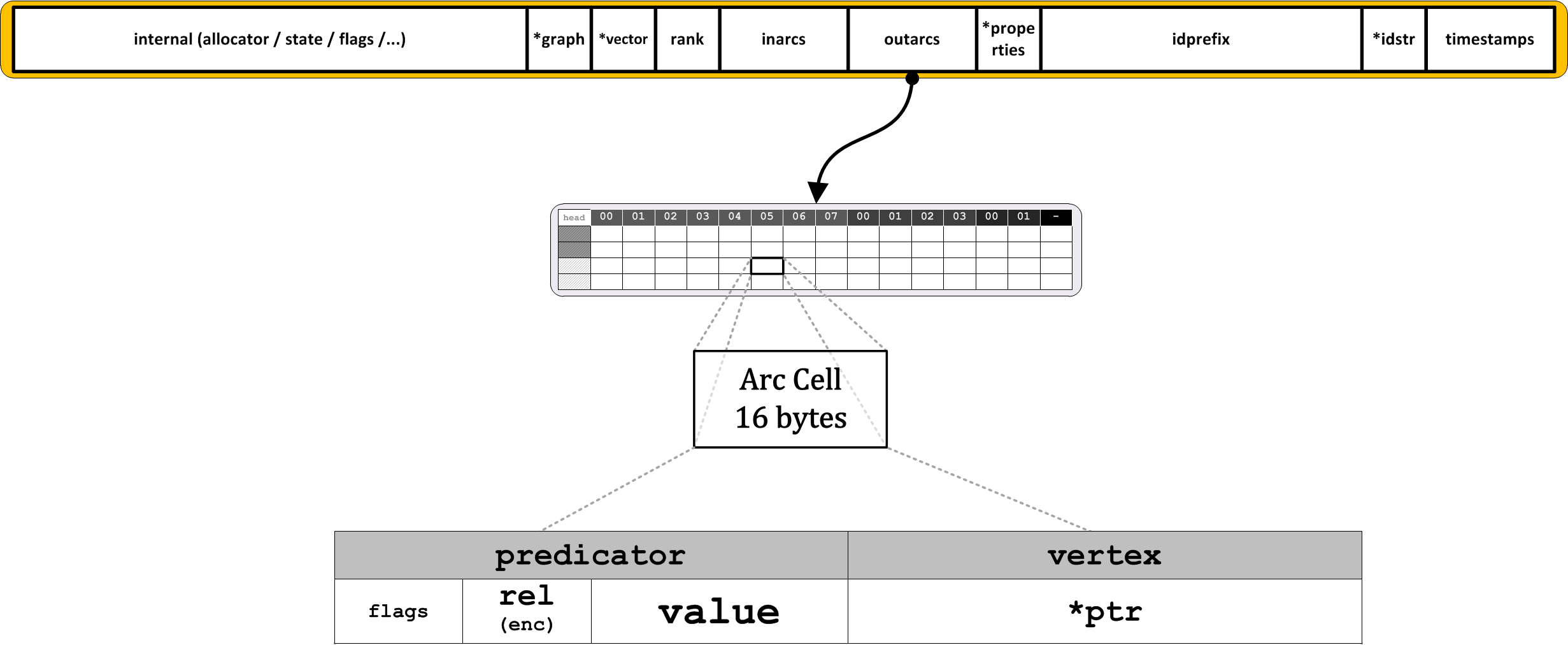

3.3.3. Arcvector with 6 cells (128 bytes)

The third arc added to an arcvector expands the 64-byte structure to 128 bytes now holding three arcs. The fourth, fifth and sixth arcs added will also fit in this 128-byte structure.

Figure 6. Arcvector with 6 cells

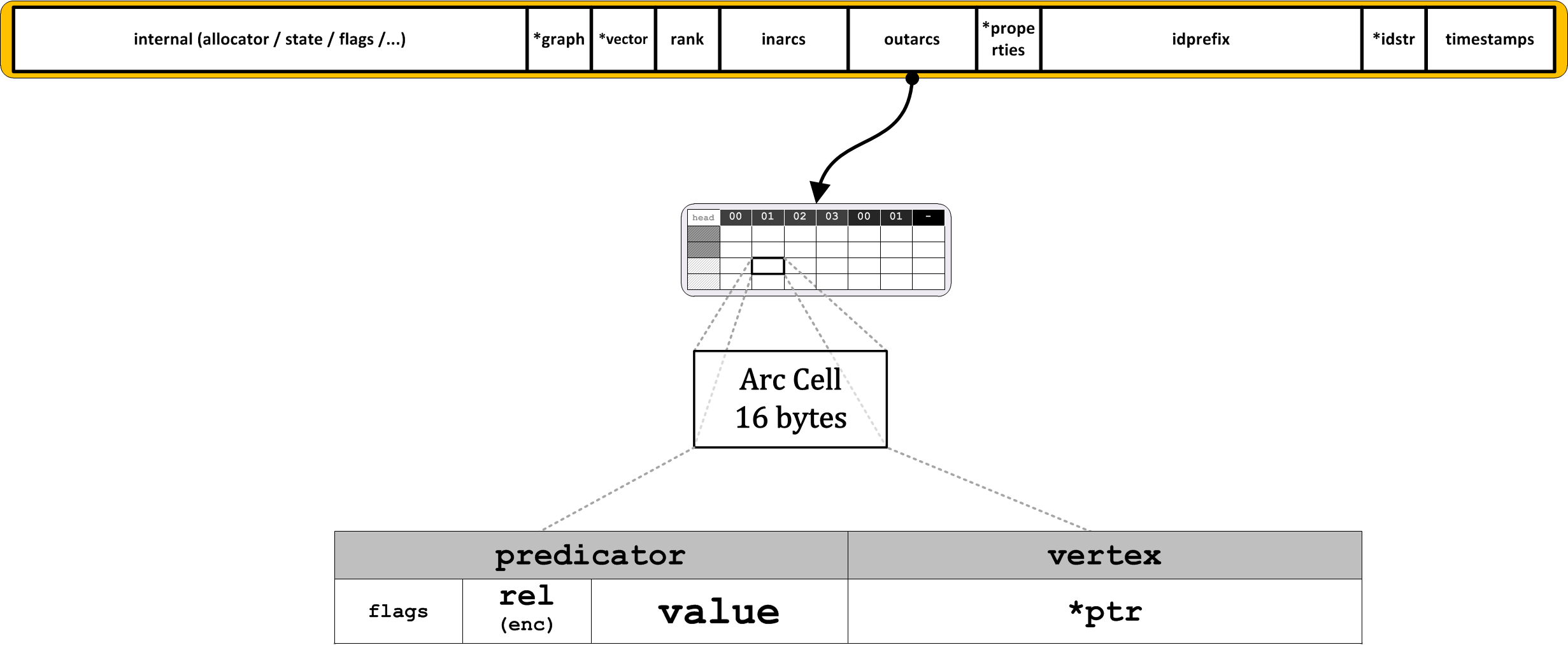

3.3.4. Arcvector with 14 cells (256 bytes)

The seventh arc added to an arcvector expands the 128-byte structure to 256 bytes now holding seven arcs. The 256-byte structure has a maximum capacity of 14 arcs, but due to probabilistic effects it may reach a full state after 10 arcs.

Figure 7. Arcvector with 14 cells

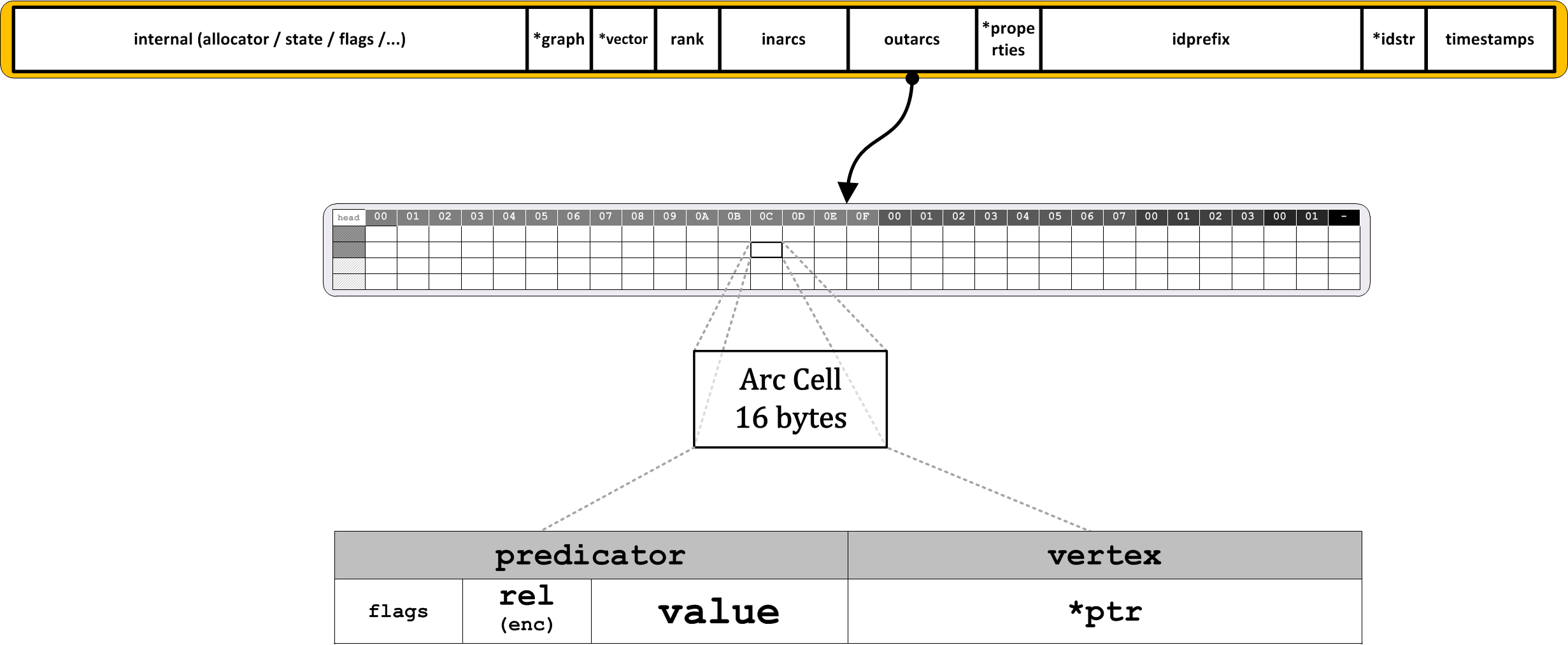

3.3.5. Arcvector with 28 cells (512 bytes)

The next size up is 512 bytes with a capacity of at least 12 and at most 28 arcs. It is highly unlikely for the low end of the capacity range to apply. In fact, it is quite likely that most arcvectors will have an actual capacity close to the upper limit.

Figure 8. Arcvector with 28 cells

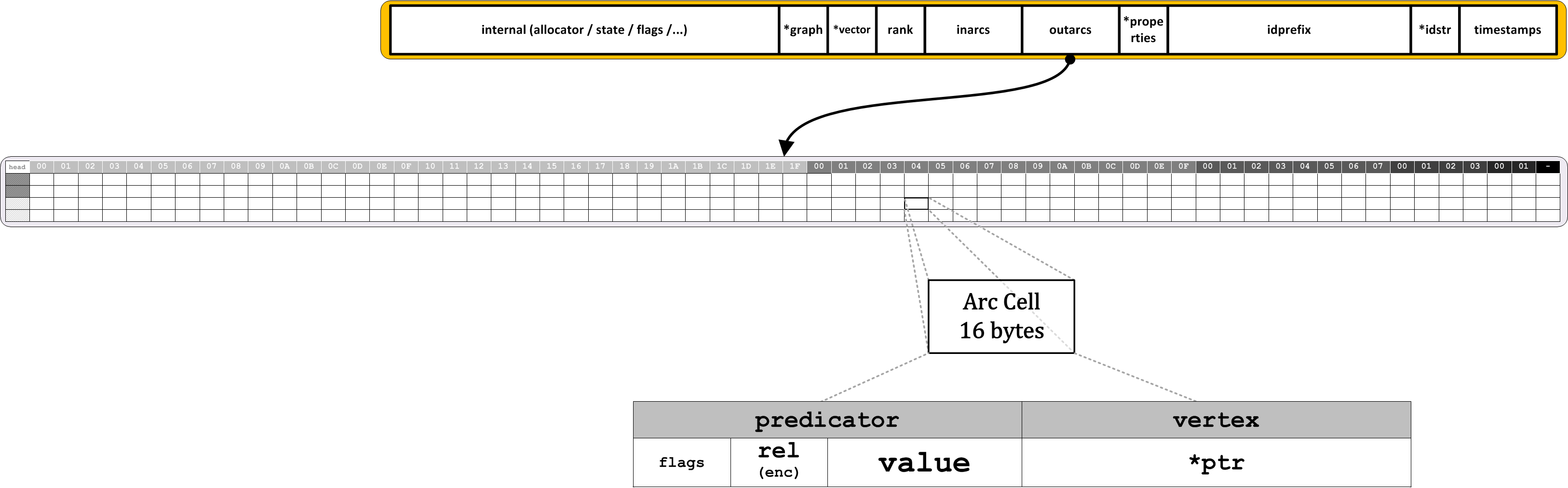

3.3.6. Arcvector with 60 - 252 cells (1024 - 4096 bytes)

As arcs are added the arcvector structure keeps expanding until it reaches 4096 bytes. After this, expansion continues by breaking the array into pieces that are linked together in a radix structure.

Figure 9. Arcvector with 60 cells

Figure 10. Arcvector with 124 cells

Figure 11. Arcvector with 252 cells

3.3.7. Arcvector Radix Structure

Expansion beyond what fits in the largest arcvector array requires a radix structure where the top array links to sub-arrays. When the sub-arrays grow too large, they link to sub-sub-arrays, and so on, until four layers of arrays have been created. When the fourth layer has reached its maximum size, a simpler chain of smaller blocks is used to continue the expansion. The small blocks at the deeper levels each holds 6 arcs. There is a maximum of 255 layers, including the upper four array layers.

Table 4. Arcvector Radix Layers
Layer	Type	Capacity	Chains to next	First chain at size
1	Array	252	64	~220
2	Array	252	64	~15,000
3	Array	252	64	~1,000,000
4	Array	252	64	~60,000,000
5	Block	6	1	~80,000,000
6	Block	6	1	~150,000,000
…	Block	6	1	…
254	Block	6	1	~25,000,000,000
255	Block	6	0	N/A (end)

Figure 12. Arcvector radix structure
